Banded 190A Cable Assemblies
$237.14 – $3,468.69
Arrival Date: May 06th - May 09th
Order within 18 hrs, 13 min and 27 sec
Need the item sooner? Contact us at [email protected]
Order within 18 hrs, 13 min and 27 sec
Need the item sooner? Contact us at [email protected]

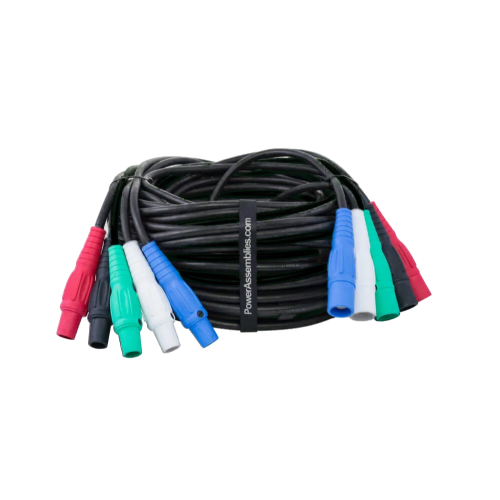

5 wire banded cable assemblies are designed for use in the entertainment industry to help allow quick and easy connection for lasting portable power. These cables are NEMA 3R rated when connected and contain UL/CSA Listed connectors made with Type SC cable.
Applications
- Theater
- Motion Pictures
- Light Industrial
- Concerts
- Generator Connections
- Convention Centers
- Mobile/Temporary Power
Downloads
Brochure
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Reverse gender | No Reverse, Reverse Ground and Neutral, Reverse Ground |
| Voltage | 120/208V |
| Cable type | SC |
| Conductors | 1 CDR |
| Length | 5', 10', 15', 25', 30', 40', 50', 75', 100', 175' |
| Nema | Nema 3R |
| Lead Time | |
| Connectors color | BLK/RED/BLU/WHT/GRN |
| END 1 | Series 16 Camlock Male, Series 16 Camlock Female |
| End 1 color | BLK/RED/BLU/GRN, BLK/RED/WHT/GRN, BRN/ORG/YEL/WHT/GRN, BLK/RED/BLU/WHT/GRN |
| End 2 | Series 16 Camlock Male, Blunt |
| End 2 color | BLK/RED/BLU/GRN, BLK/RED/WHT/GRN, N/A, BRN/ORG/YEL/WHT/GRN, BLK/RED/BLU/WHT/GRN |
| Gauge | (4)4/0 and (1)#2, (5)#4, (4)#2, (3)#2 and (1)#6, (4)#2 and (1)#6 |
| tpsleadtime | 5, 2 |
