Enclosures With Camlocks
$1,116.47 – $1,888.19
Arrival Date: December 31st - January 03rd
Order within 15 hrs, 54 min and 15 sec
Need the item sooner? Contact us at [email protected]
Order within 15 hrs, 54 min and 15 sec
Need the item sooner? Contact us at [email protected]

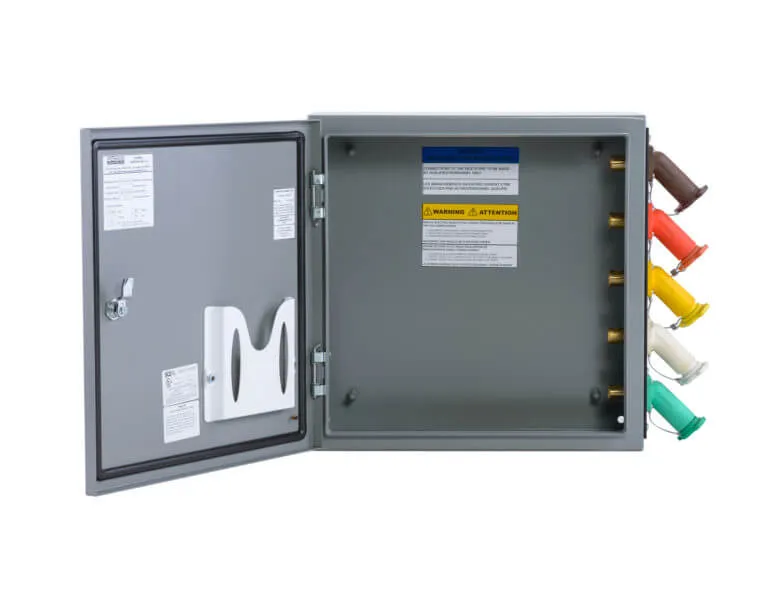

Camlock connection box are Nema 3R enclosures designed for 400 or 800 Amp configurations. These are portable power enclosures with cam panels with series 16 color coded cams mounted on top, side, or bottom depending on your request. Built from carbon steel for long life and corrosion resistance.
Applications
- Portable Power
- Temporary Power
- Generator Connections
Downloads
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Amperage | 400A, 800A |
| Cam angle | 45 Degree, 90 Degree |
| Gender | Male, Female |
| Orientation | Bottom, Right |
| Phases | 3 Phase |
| Reverse gender | No Reverse, Reverse Ground and Neutral, Reverse Ground |
| Voltage | 120/208V, 120/240V, 120V, 208V, 277/480V, 347/600V, 480V, 600V |
| Color | Gray |
| Connection type | Double Set Screw, Threaded Post |
| Nema | Nema 3R |
| Size | 20"H x 20"W x 8"D |
| Lead Time | |
| Connectors color | BLK/RED/BLU/GRN, BRN/ORG/YEL/GRN, BRN/ORG/YEL/WHT/GRN, BLK/RED/WHT/GRN, RED/BLK/BLU/GRN, RED/BLK/BLU/WHT/GRN, BLK/WHT/GRN, BLK/WT/RD, BLK/RED/BLU/WHT/GRN |
| tpsleadtime | 5 |
| Wires | |
