SKU: PWA-19PIN Categories: ,

Socapex Type Cable Assemblies

$153.24$2,294.00

Arrival Date: March 07th - March 11th
Order within 27 hrs, 12 min and 38 sec
Need the item sooner? Contact us at [email protected]

Clear

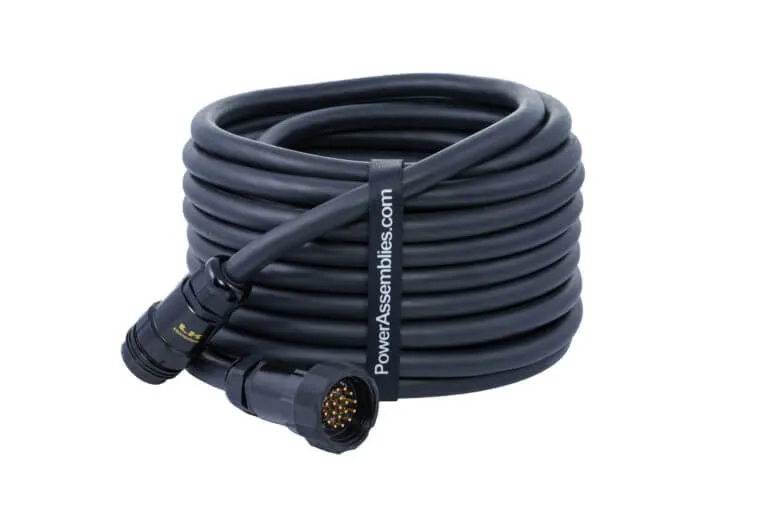

19 pin 6 circuit male to female extension
Socapex Type Cable Assemblies

19 pin socapex type assemblies are compatible with Socapex, Veam, Lex, Link, and other leading connector brands. These cables incorporate a safety grounding feature that mates the ground first, and last before breaking the connection. These cables and connectors have integrated a backshell set screw that prevents the backshell from loosening in heavy industrial operations.

Applications

  • Theater
  • Stage Productions
  • Studio Lighting
  • Entertainment Equipment Rental

Downloads

Brochure

Weight N/A
Dimensions N/A
Amperage

15A, 20A, 30A

Voltage

125V, 250V, 300V

Cable type

SJOOW, Socopex

Conductors

3 CDR, 14 CDR, 18 CDR

Length

3', 5', 6', 10', 15', 20', 25', 50', 75', 100', 125', 150', 200'

Lead Time

END 1

19 Pin Break-out Male, 19 Pin Break-in Female

End 1 color

Black

End 2

Bate Stage Pin Male, PowerCON True 1 Female, Blunt, L5-20R, L6-20R, L6-20P, Bate Stage Pin Female, L6-30P, L5-20P, 5-15P, 5-15R, 19 Pin Break-in Female

End 2 color

Black

Gauge

12AWG, 14AWG

tpsleadtime

10
