Camlock Panels
$342.09 – $5,346.40
Order within 21 hrs, 37 min and 18 sec
Need the item sooner? Contact us at [email protected]

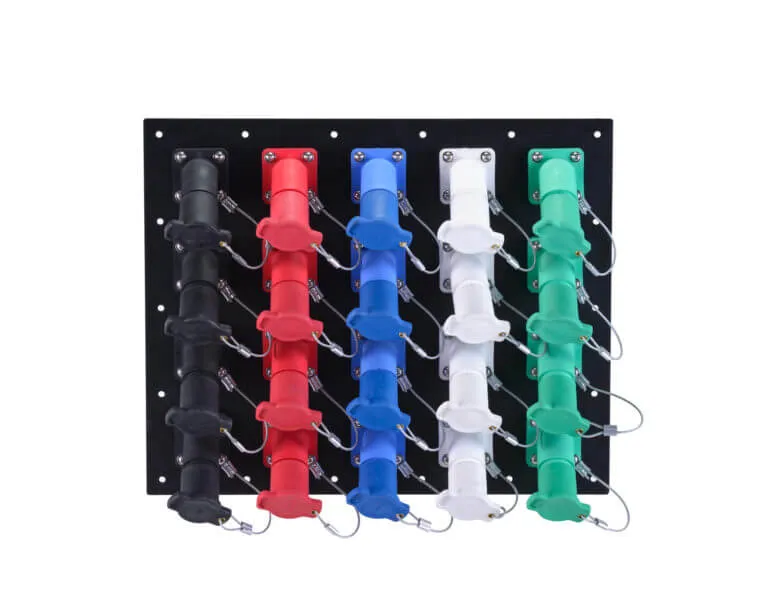

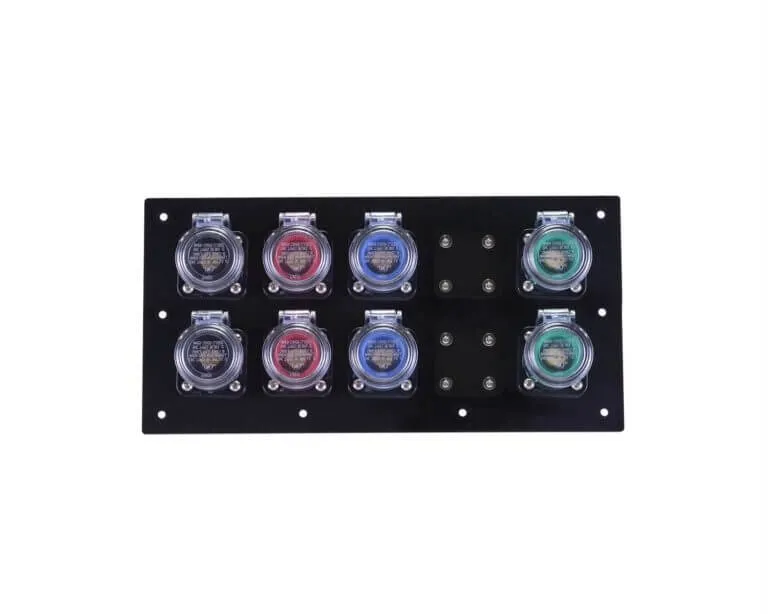

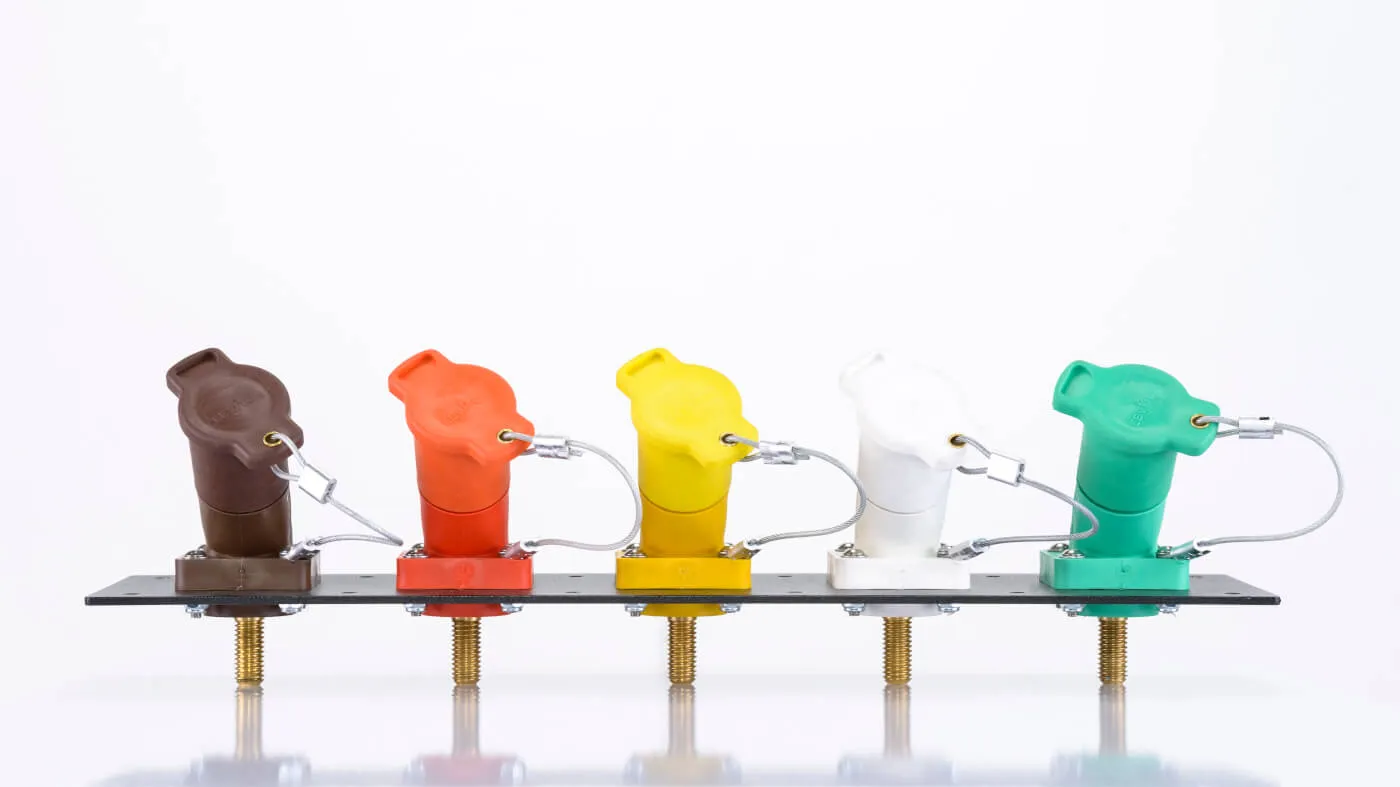

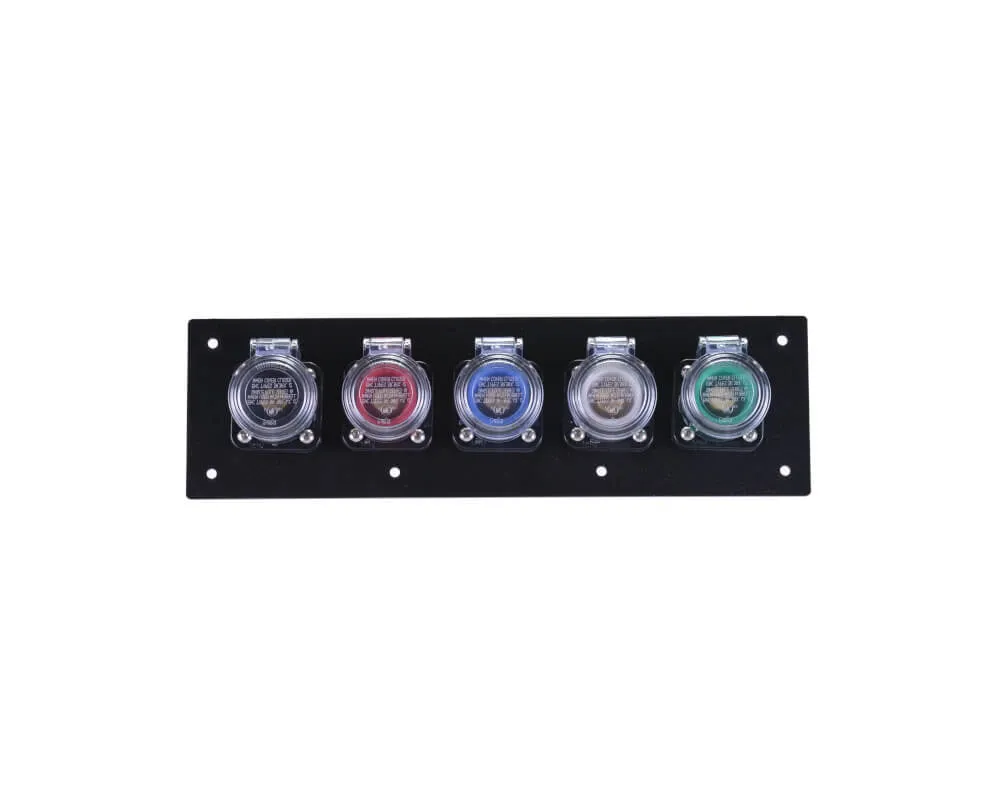

Camlock panels are built with male or female camlocks with 4 or 5 Postion configurations. 5 Position Cams are Rated for 400 Amps, 10 Position Cams are Rated for 800 Amps, etc. Maximum Amperage configurations are 3200 Amps.
Applications
- Portable Power
- Temporary Power
- Generator Connections
Downloads
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Amperage | 400A, 800A, 1200A, 1600A, 2000A, 2400A, 3200A, 4000A |
| Cam angle | 45 Degree, 90 Degree |
| Gender | Female, Male |
| Orientation | Horizontal, Vertical |
| Phases | 1 Phase, 3 Phase |
| Reverse gender | Reverse Ground, No Reverse, Reverse Ground and Neutral |
| Voltage | 120/240V, 120/208V, 208V, 240V, 250V, 277/480V, 480V, 600V |
| Color | Black |
| Caps | Clear-Snap Covers, Caps + Lanyards |
| Connection type | Threaded Post, Double Set Screw |
| Nema | Nema 3R |
| Positions holes | 4H, 5H, 8H, 10H, 15H, 16H, 20H, 25H, 32H, 40H, 50H |
| Size | 12.75"L x 4.5"H, 12.75"L x 12.75"H, 12.75"L x 7.5"H, 15"L x 15"H, 15"L x 8"H, 15"L x 4.5"H, 15.5"L x 11.125"H, 15.5"L x 12.75"H, 15.5"L x 4.5"H, 15.5"L x 7.25"H, 18.5"L x 18.5"H, 18.5"L x 4.5"H, 18.5"L x 15"H, 18.5"L x 11.5"H, 18.5"L x 8"H, 27.75"L x 15.5"H, 27.75"L x 12.75"H, 29"L x 15"H, 29"L x 18.5"H, 36.25"L x 18.5"H |
| Lead Time | |
| Connectors color | BRN/ORG/YEL/BLNK/GRN, BLK/BLK/BLK/BLK, BLK/RED/WHT/BLNK/GRN, RED/BLK/BLU/GRN, BLK/RED/BLU/WHT/GRN, BLK/RED/BLU/GRN, BRN/ORG/YEL/BLANK/GRN, BRN/ORG/YEL/GRN, BRN/ORG/YEL/WHT/GRN, BRN/ORG/YEL/WHT, BLK/RED/WHT/GRN |
| tpsleadtime | 5, 2, 8 |
