SKU: PWA-PIN+SLEEVE Categories: ,

Pin And Sleeve Cable Assemblies

$306.97$1,544.70

Arrival Date: June 10th - June 12th
Order within 17 hrs, 13 min and 37 sec
Need the item sooner? Contact us at [email protected]

Pin and sleeve cable connectors assemblies are compatible wth all IEC 60309 Pin and Sleeve device manufacturers. Our pin and sleeve connectors design ensure that the ground is the first to mate and the last to break for safe connections. These connectors are designed for high-pressure, high-temperature wash-down environments.

Applications

  • Mining and Construction
  • Entertainment
  • Shipyards and Docks
  • Oil and Gas
  • Industrial and Plant Maintenance

Downloads

Brochure

Weight N/A
Dimensions N/A
Amperage

30A, 60A, 100A

Voltage

120/208V, 480V

Cable type

W, SOOW

Conductors

4 CDR, 5 CDR

Length

10', 15', 25', 50'

Lead Time

END 1

Pin & Sleeve Plug, Pin & Sleeve Connector

End 1 color

Blue, Red/White

End 2

Blunt, Pin & Sleeve Connector

End 2 color

Blue, N/A

Gauge

4AWG, 6AWG, 8AWG, 10AWG

Poles

4P5W

tpsleadtime

8

brand

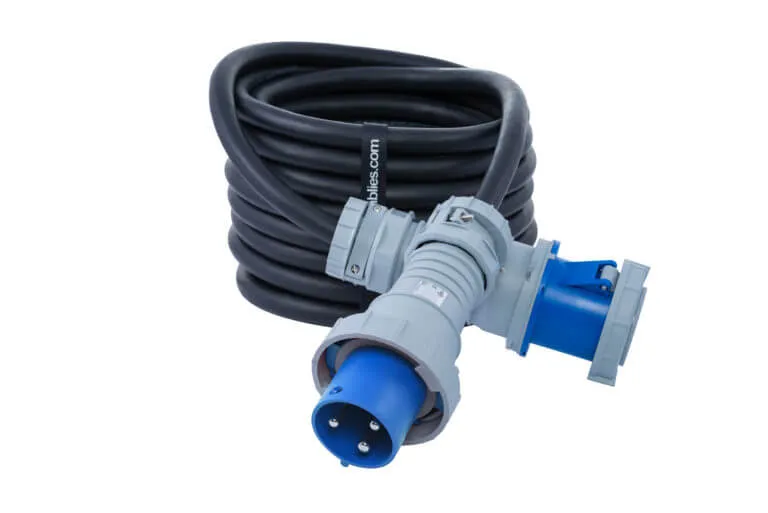

Power Assemblies Pin and Sleeves cable assemblies  with blue plug and connectors
Pin And Sleeve Cable Assemblies
$306.97$1,544.70 Select options
